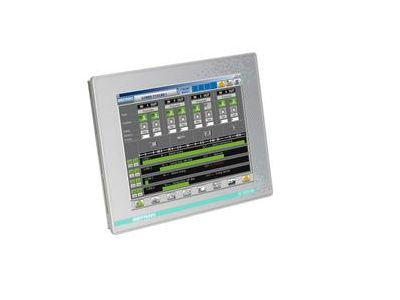

Operator Terminal Touch Screen HMI – Gefran Vedo EL35CT

HMI touch screen with free project software and powerful communication options! Full compatibility with Brainchild IO devices.

Need more info?

Description

Touchscreen colour HMI in amazing 1/4 DIN and 6.5 inch package

  • 3.5in TFT colour display 320×240 resolution
  • CanOpen, Modbus RTU and TCP, Ethernet 10/100 Base T
  • Integrated SoftPLC [IEC61131-3]
  • 64Mb FLASH – no moving parts
  • Programmable with Gefran Automation Builder
  • Expandable with Gilogic I/O modules – 4 slots
  • six function keys on panel
  • Windows CE or Linux operating system

The Gefran Vedo series of HMIs include models from this 3.5inch and 6.5inch  through to 15 inch displays. The Vedo EL 35CT featured here is ultra compact in a 96x96mm case, but with high display resolution and powerful programming capability, allowing full functionality with process visualisation, and graphic displays.

On the other hand, for the low cost, the 35CT offers the chance of implementing small projects in limited space, with very high flexibility for functionality, control, and displays.

Downloads:   Data sheet : EL35CT      TL65CT
