Dry block temperature calibrator

$2,300.00

ECECAL 50250: Compact temperature source and dry well calibrator for testing temperature sensor and control system

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

1 in stock (can be backordered)

SKU: EC-ECECAL-50250 Category:

Description

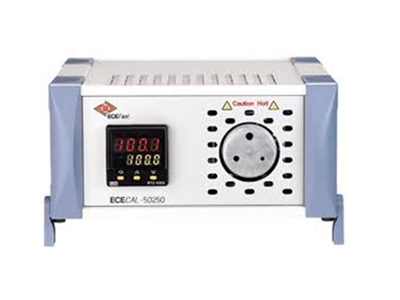

Dry block calibrator

The ECECAL 50250 is delivered & ready to operate on 240V mains supply with NATA certificate. It is used to check the performance of temperature probes on site, while connected to their control or monitoring system. It can also be used in the laboratory to check probes with a certified reference thermometer.

The ECECAl 50250 especially suits industries such as the plastics industry where it enables checking of probes, and controllers at the same time, but is widely sold for on site verification of autoclave thermocouples

  • Range         : Ambient to 250°C
  • Resolution :  0.1°C
  • Accuracy    :  ±1.0°C at 150°C
  • Accepts most probe sizes 3, 4.5 & 6mm
  • Well depth 100mm for 4.5 & 6.0 dia and 60mm for 3dia
  • Heat to 250°C in 15min
  • Cool to 100°C in 15 min
  • Custom block drilling – optional

This product is available with NATA certificate.

Downloads:   Data sheet

Additional information

Model number

EC-ECECAL-50250
