Ethernet-to-Serial Converter – Brainchild BC-PC-E

$357.00

Serial-to-ethernet transparent communications in networks with RS485 Modbus modules.

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

1 in stock (can be backordered)

SKU: BC-PC-E Category:

Description

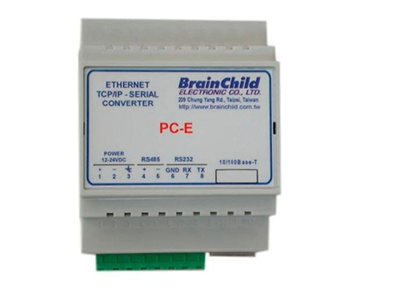

Converter serial to ethernet –  DIN Rail or panel Module

  • Serial to Ethernet communication
  • DIN Rail/Panel Mount
  • COM1: RS232/RS485, RJ45 for Ethernet connectivity
  • Application: Connects IO modules, controllers, HMI with Ethernet Network
  • Function: Transparent data link or Gateway to convert Modbus RTU to Modbus TCP messages
  • Support Multiple sockets enables up to 4 Masters to communicate with slaves connected to PC-E converter
  • Web server for Configuration

One of the many Brainchild protocol converters to allow devices to communicate independently of the platform. Allows I/O modules to connect into TCP/IP networks with Modbus protocol.

Downloads:   Data sheet
                              User manual
