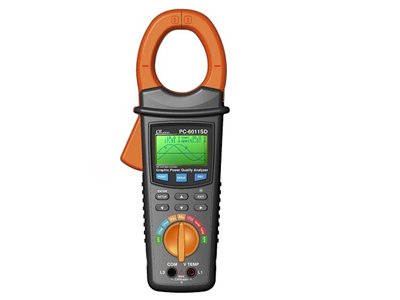

Lutron Clamp power analyser PC6011SD

$688.00

Very economical solution for the analysis of single phase or balanced 3 phase systems with voltages to 600VAC and current to 2000 amps.

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

Available on backorder

SKU: LU-PC6011SD Categories: ,

Description

Lutron power analyser

                         The clamp power analyser  Lutron PC-6011SD is a very economical solution for the analysis of single phase or balanced 3 phase systems with voltages to 600VAC and current to 2000 amps. The product is related to the Lutron DW 6095 series 3 phase power analysers and uses the same SD card logging. Readings are logged from every 2 second to 7200 seconds as instantaneous values. It also captures 3 types of transient events with programmable threshold. The display is graphical dot matrix and has many graphic formats including waveform on voltage and current – phasor diagram and others.
  • Measures ACV, ACA, KW, KVA, KVAR, PF
  • Measures KWH, KVAH, KVARH, PFH
  • Frequency, harmonics to 50th
  • Type K thermocouple input  0.1ºC resolution to 199.9ºC and 1ºC to 1200ºC
  • SD card logging
  • Cables to 57mm dia
  • 10amps to 2000amps autorange
  • Record graphic displays to memory as bmp files
Delivery 3-4 weeks

Downloads:   Data sheet   Manual

Additional information

Model number

LU-PC6011SD
