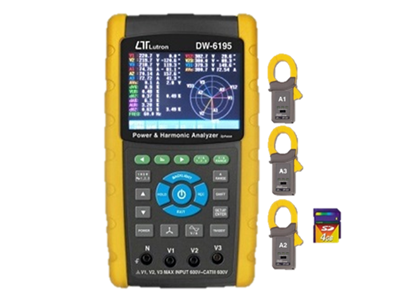

3 Phase Power analyser, Lutron DW6195


Lutron DW6195: SD Card real time data recorder with harmonic measurement, Color LCD display, Harmonics display ( 1-50th order ). DW-6195 and DW-6095 are the same type of meters, but 6195 display screen is color LCD, replaces the original monochrome LCD. Watch the video

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

Available on backorder

SKU: LU-DW6195 Categories: ,


Power analysers

  • DW-6195 new full colour graphics display
  • AC parameters, Power Factor, Phase, Harmonics,Crest Factor, Active, Apparent, Reactive Power
  • Peak AC voltage and current
  • IEC 1010 CAT III 600V
  • Includes 3 x 1200 amp current clamps – optional 3000 amp flexible style (3 x LU-CP3000 required)
  • Real time logger 2 seconds to 7200 seconds – to SD card (instantaneous values)
  • Transients recorded such as dip, swell and outage with programmable threshold (no saved waveform)
  • Display waveform, harmonics, total harmonic distortion, phase diagram
  • Export recorded data direct via SD card to EXCEL spreadsheet for analysis
  • optional PC software available

Power quality check, power parameters, phase diagram, harmonics and transients – COMPLETE KIT READY TO USE

Downloads:   Datasheet     Manual
