Vibration meter, tachometer LU-VT8204

$1,098.00

Hand Held Vibration meter with logging and tachometer for condition monitoring of machinery; All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

2 in stock (can be backordered)

SKU: LU-VT8204 Category:

Description

Vibration-tachometer

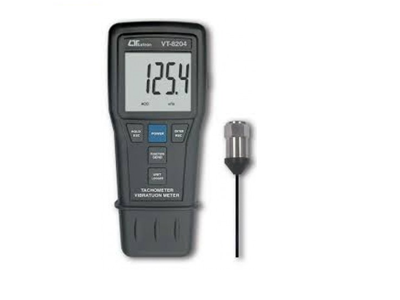

The Lutron VT-8204 is a flexible instrument for measurement of vibration parameters and RPM for condition monitoring of rotating machinery and bearings.  Vibration and temperature are two main parameters to determine the preventive maintenance program for many industrial machines such as fans, pumps and drives.

Combining the functions of RPM as well as vibration the VT-8204 is a versatile and economical solution for maintenance applications.

  • Measures Acceleration, Velocity, and Displacement.
  • Independent laser optical and contact tachometer
  • Acceleration : 0~199.9m/sec²
  • Velocity : 0~199.9mm/sec
  • Displacement : p-p 2mm
  • Optical Tacho : 10- 99,999 RPM
  • Contact Tacho : 0.5-19,999 RPM
  • Data Logging : Max 1000 points into memory
  • Accuracy : +/-5% + 2 digit on vibration readings; +/-0.05% + 1 digit on RPM

Optional software :

  • The data acquisition software LU-SWU801-WIN is compatible with WIN 98, XP, Vista which enables to monitor the real time data (real time trend)
  • The data logger software LU-SWDL2005/USB is compatible with WIN 98, XP, Vista which enables to download the recorded data from the meter to the computer (historical trend)

Downloads:  Data sheet      Manual
