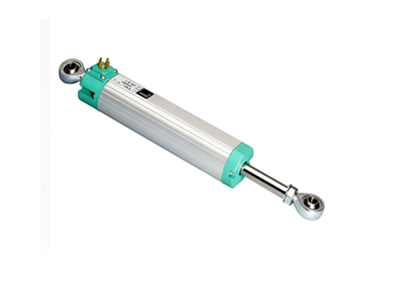

Self aligning cylindrical case Gefran PC & PC67

$980.00 – $1,200.00

Rugged point-to-point potentiometric displacement sensors by Gefran.

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
Clear
SKU: N/A Category:

Description

Displacement sensor ball joints, resistive output, 3 wire, 50 -750mm ranges

  • Stocked from 50 – 750mm stroke
  • Linearity 0.05%
  • Rugged IP65 construction – mini DIN connect (or cable)
  • Resistance 5K Ohms (to 600mm) max.
  • Speed to 5m/sec
  • Max 100°C
  • Body Ø35mm x length = stroke + 187mm

The PC series is extremely heavy duty with 10mm SS shafts and spherical ball joints (included). Construction of the body is extruded aluminium and it is sealed to IP65. All interface hardware is also available.

PCM uses a mini DIN connector – order separately; PC67 is a new IP67 version of the PC series with new seal design – contact us for details

Downloads:   Data sheet    PC        PC67

Additional information

Connector type

DIN connector, IP67 version seal design
Stroke length

50, 100, 150, 200, 225, 275, 300, 400, 500, 600
