Displacement transducer, 25-300mm Gefran PZ34


Potentiometer displacement with 19mm body diameter

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
SKU: N/A Category:


Displacement transducer, 25-300mm Gefran PZ34

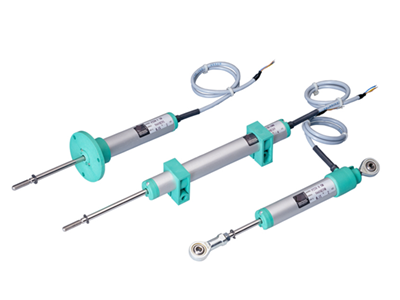

 The Gefran PZ34 series displacement potentiometer is larger and more robust than the PZ12 with 19mm body and 5mm SS shaft and covers applications to 300mm. It is available with a variety of configurations for surface mount, flange mount and mounting between centres [rod ends]
  • Strokes from 50 to 300mm Resistance 1-12KOhm
  • IP60  SS shaft – anodised aluminium body
  • working -30 to 100C — 50G, 11 ms
  • Life 25million strokes or greater
  • Accuracy 0.05% above 125mm stroke

There are many versions of the PX34 – check the data sheet for details

Downloads:   Data sheet

Additional information

Stroke length

50, 75, 100, 125, 150, 200, 250, 300


Bracket: S, Selfaligning ball-joints: A, Flange: F
