Load Cell to measure Tension, Gefran TR series

GF-TR, Tension measurement in plastic films or paper products

Need more info?

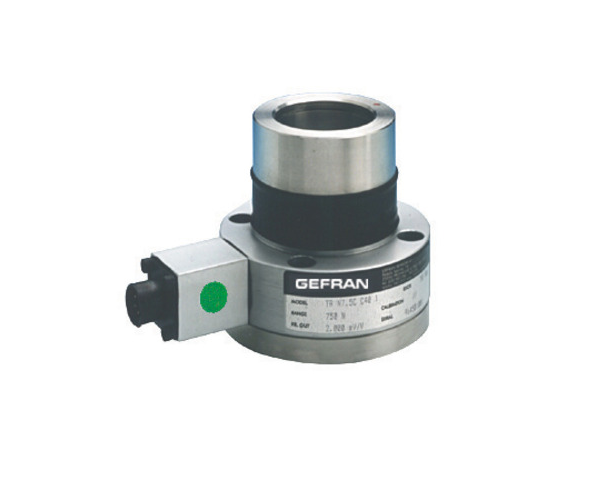

Load Cell

Gefran TR series is specifically designed for measuring tension in plastic film, paper or tapes in process lines and coiling operations. Because of the design they are very easy to mount on take up rolls and tension rolls. The forces are a direct measurement of product tension. Control may be effected by a fast PI controller such as Gefran 2500 series which accepts direct strain gauge input 2mV/V in this case.
  • Measurements from 100N to 2000N radial force
  • Accuracy Class 0.5%
  • Corrosion resistant   IP65 sealing
  • Internally generated calibration signal
  • Sensitive up to 35degrees independently of the mounting hole position
  • Protected against overloads  >500%

Downloads:   Data sheet         Brochure            Indicator
