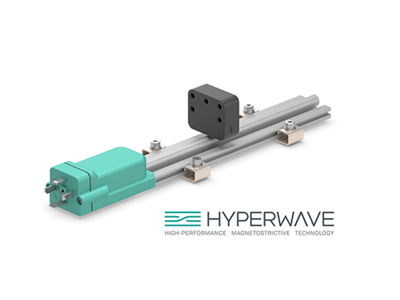

Contactless position sensors Gefran, WPG-A

$396.00$990.00

Contactless linear position transducer with magnetostrictive technology for longer lifetime. The absence of electrical contact on the cursor eliminates all wearing and guarantees almost unlimited life. Direct and reverse signal for a wide flexibility of use. The high performance in terms of EMC immunity make the WPG series suitable for use in industrial environments with presence of electromagnetic interference. Choose the suitable cursors from this link

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
Clear

Description

Contact less linear position transducers

• Strokes from 50 to 1500mm
• Sliding or floating magnetic cursor
• Direct and reverse analog output for displacement
• Standard valve or M12 connector
• Work temperature: -20…+75°C
• IP67 protection
• Power supply 24Vdc ±20%
• Electromagnetic compatibility EMC 2014/30/EU
• Compliant to the directive RoHS 2011/65/EU

Downloads:  Datasheet    Manual

Additional information

Connector output

4 pole DIN 43650 connector, 5 pole M12 output connector, 6 pole output conn. DIN 45322, 8 pole M12 output connector

Electrical stroke

200, 225, 250, 300, 400, 500, 600, 1000, 1500, 2500

Output

0.1…10.1 V DC, 1 cursor only for direct output: W, 4…20 mA, 1 cursor only for direct output: E, 0…10 V DC, 1 cursor for direct / reverse output:J, 4…20 mA, 1 cursor for direct / reverse output: Z
