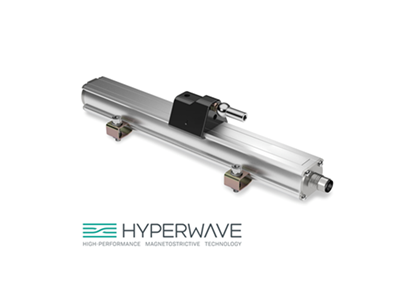

Contactless position sensors, WPP/WPA-A

$600.00$2,450.00

Hyperwave profile version strokes from 50 to 4000mm with analogue output

  • Strokes from 50 to 4000mm (WPA-A)
  • Strokes from 50 to 2500 mm (WPP-A)

Choose the suitable cursors from this link

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
Clear

Description

  • Optimised mechanical structure
  • Sliding or floating magnetic cursor
  • Availability of several analogue outputs (voltage or current) for direct position and speed measurement or reverse measurement (only position)
  • Single or double cursors models availability
  • Power supply 24Vdc ±20%
  • Resistance to vibration (DIN IEC68T2/6 15g)
  • IP67 protection
  • Work temperature: -30…+75°C
  • Electromagnetic compatibility EMC 2014/30/EU
  • Compliant to the directive RoHS 2011/65/EU

Downloads:  Datasheet: WPP-A   WPA-A    Manual

Additional information

Stroke length

200mm, 225mm, 250mm, 300mm, 400mm, 1500mm, 2500mm, 3000mm, 3500mm

Model

WPA transducer, 5 pole M12 output connector, Analog Output 4…20 mA, 1 cursor, WPA transducer, 5 pole M12 output connector, Analog Output 4…20 mA, 2 cursor, WPP transducer, 5 pole M12 output connector, Analog Output 4…20 mA, 1 cursor, WPP transducer, 5 pole M12 output connector, Analog Output 4…20 mA, 2 cursor, WPP transducer, 6 pole output conn. DIN 45322, Analog Output 0…10VDC, 1 cursor (std), WPP transducer, 8 pole M12 output connector, Analog Output 0…10VDC, 1 cursor (std)
