Paddle type flow switch 1″ BSP and ¾” BSP

$300.00$320.00

BR-LFS Adjustable paddle type Flow Switches for pipes 25mm and larger. Designed to mount vertically, for low solids content and low viscosity fluids only.- in a horizontal pipe.

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
Clear
SKU: BR-LFS-01H Category:

Description

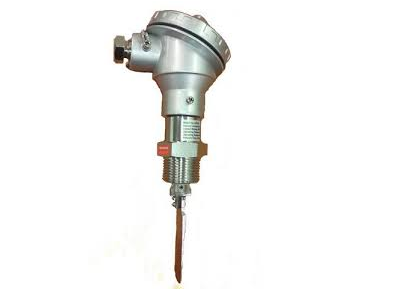

Paddle flowswitch

Flow switches paddle type – BR-LFS-01H / BR-LFS-02H switches, sense flow in either direction to monitor flow/no-flow conditions. Paddles are selected to suit the pipe size and bolted in place. Installation causes a pressure drop of below 30KPa. Process thread is 1″ BSP and  ¾” BSP.

  • Alloy terminal head
  • Paddle sizes for pipes from 25mm upwards- precut
  • 150oC and 24 bar rating
  • SS paddle
  • SPDT, max 1A, max 40VA, max 240VAC
  • Wetted parts: Teflon, SUS304 SS
  • Flow / no flow at very low trip point

Caution – use Loctite high strength thread lock on the Paddle retaining bolts.

Downloads:   Data sheet

Additional information

Process connection

1" BSPT, ¾” BSP
