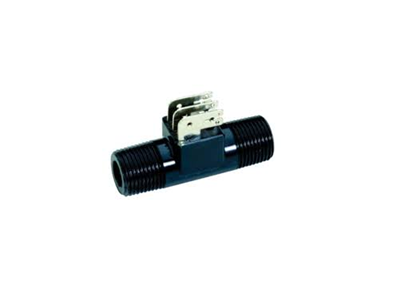

Turbine flow sensors – Gems FT110, GM-173934

$243.00

A series of high accuracy miniature flow sensors for clean, low viscosity liquids by Gems. Low Flow Rates of 0.5 to 30 L/Min (.1 to 8 GPM); Accuracy ±3% of Reading; Mounts in Any Orientation

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

Available on backorder

SKU: GM-173934 Category:

Description

Turbine Flow Sensors

  • Accuracy of 3% of reading,  repeatability 0.5%
  • Nylon & PTFE/Graphite
  • Mounts in any position 3/8″ NPT or BSP
  • From 0.5 to 30 litres/min in 5 versions
  • Only 55mm x 17mm Dia – 14bar/100°C
  • NPN open collector output
  • Spade connectors or attached cable options

The Gems FT110 is a new Hall effect turbine flow rate sensor ideal for OEM applications of low flow liquids. In particular it suits vending machine control of dispensing volume to remove problems caused by control using time.

The output is Hall Effect pulses with high pulse rate per litre. BSP threaded versions are available on request.

Matching transmitters or indicator/totallisers are available.

Downloads:   Data sheet
