Piston type, 0.5~7.5 L/min 107 Bar, Gems FS380

$272.00$580.00

The Gems FS380 is a new low cost switch for high line pressures. It requires 100 micron or better filtration and is ideal for applications such as industrial cleaning equipment or high pressure lubrication.

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
Clear
SKU: N/A Category:

Description

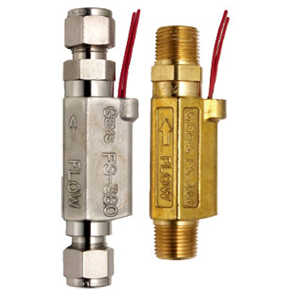

Compact flow switch for high inline pressures In-line switch (to 107 Bar) – Gems FS380

 These rugged inline flow switches require 100 micron filtration and are less susceptible to clogging than other high-pressure inline flow switches. The one piece magnetic PPS composite piston makes the FS-380 ideal for high-pressure applications such as industrial cleaning equipment. The FS-380 is also an excellent choice for semicon cooling applications where simple design and reliable operation are required.
  • Flow rates 0.5 to 7.5 L/min
  • Port size 3/8″ NPT Male
  • Material brass (SS optional)
  • 34 bar and 135°C
  • Output SPST 20VA
  • Set Point Differential 20% Maximum
  • Set point accuracy ±20% Maximum

 Downloads:   Data sheet

Additional information

Material

Brass, 316 SS
