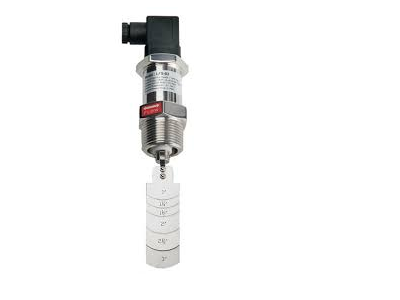

Paddle type ¾” BSP DIN connector, BR-LFS-04H

$320.00

BR-LFS flow switches designed to mount vertically – in a horizontal pipe- for low solids content and low viscosity fluids only.

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

2 in stock (can be backordered)

SKU: BR-LFS-04H Category:

Description

Paddle flow switches

 Paddles are selected to suit the pipe size and bolted in place. Installation causes a pressure drop of below 30kPa. Process thread is ¾” BSP and paddle can be selected for pipe sizes 1″ (25mm) bore and above. The pivot construction is rugged with large DIN plug.

  • Process connection ¾”BSP
  • Paddle sizes for pipes from 25mm upwards- precut and selected during installation
  • 120ºC and 24 bar rating
  • SS Paddle and Aluminium alloy body
  • SPDT, max 1A, max 40VA, max 240VAC
  • Wetted parts Teflon, SUS304 SS
  • Flow / No Flow at very low trip point and low pressure loss
  • 18.92L/min to 124.91L/min (based on pipe size and paddle length)

 Caution – use Loctite high strength thread lock on the Paddle retaining bolts. Switches are designed to mount vertically

Downloads:   Data sheet
