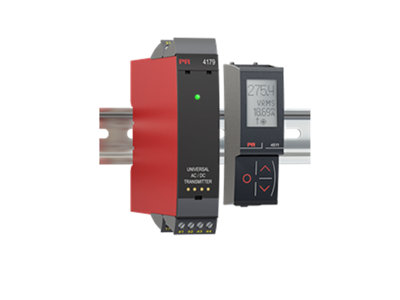

Universal AC/DC transmitter, PR-4179

$292.00

PR-4179: AC voltage and current transducer with universal configuration for input type

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

3 in stock (can be backordered)

SKU: PR-4179 Category:

Description

Voltage to current

With a current range up to 5A the PR-4179 can be matched to any common CT – for example with 0-1amp up to 0-5amp output, or measure low level AC currents direct. Similarly it can be used for AC voltage to 300VAC with direct connections. Accuracy is better than 0.3% and the PR-4179 is part of the 4100 series family with universal power supply from approximately 20V to 250V in AC or DC. 5 year warranty from manufacturer

  • 0-5VAC RMS or 0-300VAC RMS for universal application using one unit
  • Small minimum spans for fine measurement 0-0.5A and 0-0.5V  AC
  • Adjustable filter on output from 0 to 60 seconds
  • Output mA and V including bi-polar  active or passive output for 4-20mA
  • operates over range 40-400Hz

– Measures AC current and voltage signals
– Outputs passive or active current signals
– Programming, process monitoring and diagnostics via 4511 / 4501
– Response time < 0.75 s and excellent accuracy better than 0.3%
– Universally powered by 21.6…253 VAC / 19.2…300 VDC

Downloads:    Data sheet       Manual
