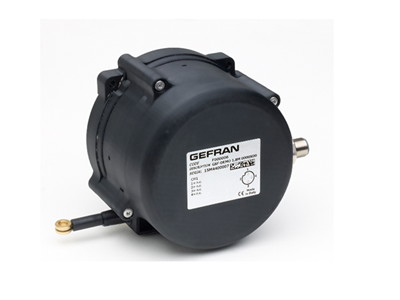

Wire position transducer, Gefran GSF series

$680.00$790.00

GF-GSF, Gefran transducer suitable for mobile hydraulics applications. Developed to guarantee a robust, high-performance solution for applications such as agricultural vehicles, earth-moving machines, and hoisting equipment.

For measurement range other than mentioned in the price selection guide, please contact us.

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
Clear
SKU: N/A Category:

Description

 Wire position transducer

Developed to guarantee a robust, high-performance solution for applications such as agricultural vehicles, earth-moving machines, and hoisting equipment.

Gefran’s new wire position transducer offers an extremely robust, high performance solution for difficult applications in harsh envoronments. Then sensing wire is 316SS with nylon coating and is availablein a variety of ranges up to 8.3M. The electrical connection is M12 4P with IP67 rating and outputs include all common process outputs and CANopen for construction equipment.

The basic version is designed for connection as a voltage divider, but high level outputs such as 4-20mA and ratiometric voltage can be specified.
  • Ranges 1800mm, 2300mm, 3300mm ……… 8300mm
  • Linearity 0.5% and repeatability 0.1%
  • Working temperature -40 to 85C
  • Life cycles 250000 (potientiometer)
  • Power 10-30VDC

 Downloads:   Data sheet        User manual

Additional information

Measurement range

4.300mm

Output type

Potentiometric – voltage divider, 0.5…4.5Vdc, 4…20mA output
