CT series Compact Two-piece Optris pyrometers

Precise non-contact temperature measurement with separate electronics with easy accessible programming keys and LCD backlit display. 22:1 (precision glass optics), 15:1 (precision glass optics) and 2:1 (with flat front window)

Downloads:   Datasheet    Manual

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

Description

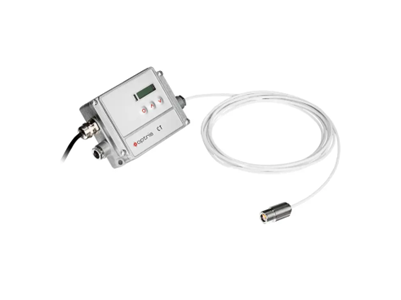

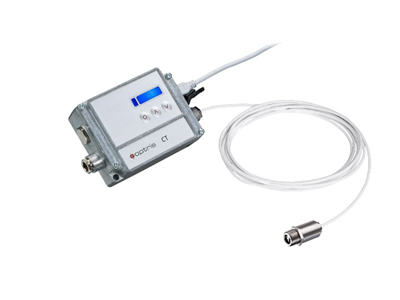

CT series Small head, Separate control box

The Optris CT series infrared sensor emphasizes adaptability, with the electronics box providing a range of analog and digital outputs, including 0/4 – 20 mA, 0 – 5 V, 0 – 10 V, USB, RS485, RS232 interfaces, relay outputs (2 x optically isolated), Profibus DP, ProfiNet and Ethernet, Ethernet IP.

  • Temperature range: -50 °C to 975 °C
  • Spectral range: 8 to 14 µm
  • Response time: 150 ms
  • High ambient temperature rating up to 180 °C
  • Higher Distance-to-spot size ratio of up to 22:1
  • Unique thermal shock-resistant design for best repeatability and accuracy
