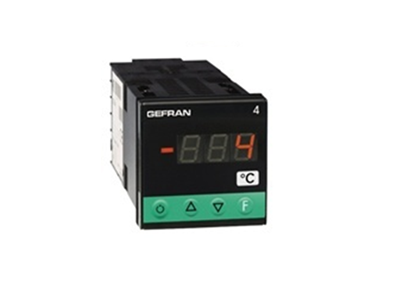

Temperature Indicator, Gefran 4T, 48×48/72×36


GF-448/GF-472 Gefran digital indicators with LED and universal input

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
SKU: N/A Category:


Digital Indicator

  • Sizes 72 x36  & 48 x 48
  • Standard T/C, RTD, or linear inputs
  • Linearisation of non standard inputs
  • Optional – strain gauge, potentiometer, AC & frequency
  • Power supply 200 to 260V AC, 90 to 140V AC [except 472 series]
  • Accuracy 0.25%
  • GF-448  4 digit resolution
  • GF-472 resolution according to input type

The Gefran 4 Series indicators use new µP technology to provide maximum flexibility with economy. They may be fully configured from their front panel or using a PC.  These are our only 48 x 48 mm 1/16 DIN 4 digit indicators. GF-448 is mains supply while GF-472 is 11-27VDC supply

Downloads:   Data sheet

Additional information

Size and power supply

48x48mm, 200 to 260V AC, 36x72mm,11-27VDC
