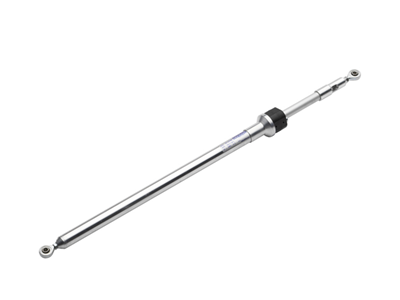

Magnetic drag for cylinders PME/PMA/PMI

$780.00$1,280.00

Able to be mounted entirely within the cylinder.

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
Clear
SKU: N/A Category:

Description

Transducer without drag shaft for hydraulic application

Offering significant advantages to cylinder manufacturers, the PM series is the first sensor able to mount entirely within the cylinder. This gives mechanical protection & immersibility depending on the cylinder design. It is compatible with a wide range of mineral & synthetic oils. With models for pneumatic cylinders.

Features:

  • Cursor Magnetic Drag
  • Strokes 50 to 1000mm
  • Linearity 0.05%
  • Working -30 to 100°C
  • Allows yoke on cylinder end
  • Life to 100 million operations
  • Speeds to 5M/sec
  • Repeatability 0.08mm

PME series has an external magnetic actuator linked to an internal measurement cursor and PMA comes with self-aligning joints.

Downloads:   Data sheet  PME  PMI  PMA

Additional information

Stroke

300, 750

Cable length

1M, 10M
