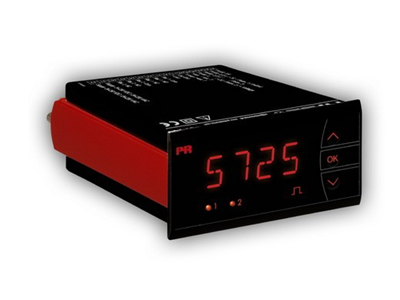

Programmable frequency indicator, PR-5725

$228.00$352.00

Universal frequency, pulse indicator with optional dual alarm relays and retransmit analog output from PR Electronics – PR-5725;
Measures NPN, PNP, Contact, NAMUR, S0, Tacho and TTL sensors

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
Clear
SKU: N/A Category:

Description

Programmable frequency indicator with 2 alarms and analog output options

  • 0.001 to 50KHz range with 4 digit indication
  • Universal input signal types – sensor supply 5-17VDC
  • 2.3KVAC / 250VAC isolation
  • Optional 2 relays and analog retransmission
  • Universal Power Supply – 20-250V AC or DC
  • DNV marine approval
  • Key programmable with scrolling help text

Frequency, Pulse indicator and converter PR5725 is an extension to the existing economical 5700 series, with universal input type and universal power supply with wide configuration.

When fitted, the alarms have programmable time delays on activation and deactivation, and analog output has programmable response 1-60 seconds. Max offset on zero is 90% of the selected measuring range.

Downloads:   Data sheet     User manual

Additional information

Output

Only indicator (no output), Alarm and Analog output
