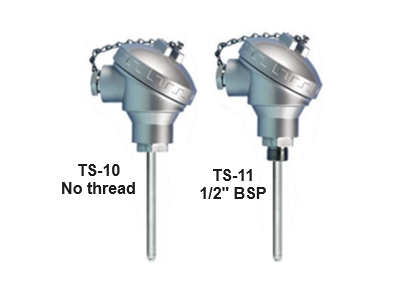

Temperature probes with no thread, TS-10

$75.00$115.00

ECEFast offers standard construction industrial temperature probes at the best prices in New Zealand. TS10 is constructed with small head and no process fitting – add compression fittings or flange to suit.

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
Clear
SKU: N/A Category:

Description

Temperature probes

Thermocouples:

  • Calibration options : (J, K, T, N) mineral insulated cable construction, ungrounded junction,
  • Diameter standard : 3mm, 4.5mm, 6mm
  • Sensor head  : Aluminium (standard), Bakelite, others on request
  • Rated to maximum for type – K: 1100°C, J: 0~750°C, T: -200 ~400°C, N: 1150°C
  • Keep head below 80°C
  • Allow extra length for any fittings required
  • Use type KX extension wire for K type sensor to connect to instrument
 PT100 / RTD:
  • PT100 3 wire
  • Diameter : 3mm, 4.7mm, 6mm(standard)
  • 316 SS sheath, Max 260°C, Accuracy Class A.
  • PT100 small alloy head with 3 terminal Bakelite block
  • PT100 use 3 core shielded copper cable to connect to instruments
We can supply indicators, controllers, and transmitters for these sensors.  See Instrumentation index for details.

Downloads:   Thermocouple    PT100

Additional information

Sensor type

K type Thermocouple, RTD

Sensor dia x length

6mmx100mm, 6mmx150mm, 6mmx200mm, 6mmx300mm, 6mmx400mm
