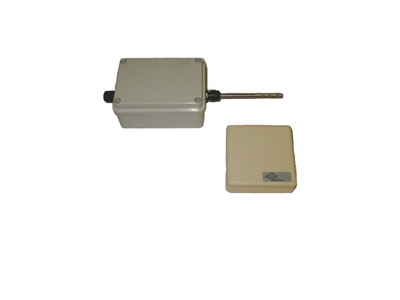

Thermocouple and PT100 for room temperature, TS-51/52

$145.00$210.00

Attractive wall mount PT100 temperature sensor in wall-mounted housing. Optional transmitter that can be fitted with TS-51, TS-52 is PR-5333A (loop powered 4-20mA transmitter)

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327
Clear
SKU: N/A Category:

Description

Thermocouple sensor

 ECEFast manufactures a full range of stock and custom built temperature sensors. The wall mount variants are made for measuring ambient temperatures in rooms, including cool rooms and freezers.  These can be fitted with loop powered 4-20mA transmitters and scaled to whatever temperature range is required and the optional transmitter that can be fitted with TS-51, TS-52 is PR-5333A with very high accuracy and stability
  • Temperatures from -80°C to +80°C
  • Standard sensor PT100 Class A  3 wire
  • Options available : Band 5, 0.01% on Resistance at 0°C
  • Options available for 2 wire transmitter fitted and scaled as required – totally water resistant transmitter
  • Two styles of sensor – faster response with exposed probe design
  • TS-52 attractive HVAC style 80 x 80 x 30 mm [without probe]
  • TS-51 with external probe 77 x 110 x 56 mm [with PT100 air temperature probe]

Please note this unit is just the temperature sensor and no transmitters included.

Downloads:   TS51   TS52

Additional information

Sensor style

External sensor, Internal sensor

Sensor size

6 x 50mm air probe, 6 x 100mm air probe, Not applicable(for Internal sensor)
