Magnetostrictive level sensor Gems XT-1000

High accuracy level transmitter res. 0.25mm with 2-wire output, HART, IECEx approval.

Need more info?

Categories: ,

Description

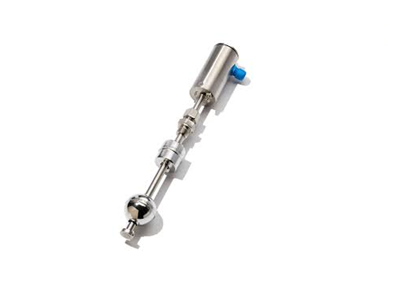

Magnetostrictive Float Level Sensor – Gems XT-1000

Level measurement intrinsically Safe IECEx using floats and magnetostrictive principle delivers reliable accuracy at a reasonable price. The product is simple mechanically and has straight forward electrical interface. Process connections are 1/2 BSP or welded flange according to specification.

  • Rod diameter is 12mm and the housing is 50dia x 120mm in SS
  • Float sizes vary from 43-52mm in SS or titanium
  • Resolution 0.1mm accuracy 0.25mm
  • ranges from 200mm to 4000mm
  • Temperature compensation – ambients from -200 to 250C to 16-50 bar depending on float
  • Fast response  rugged and durable with simple installation
  • HART protocol Ver 6.0 optional

Downloads:   Data sheet
