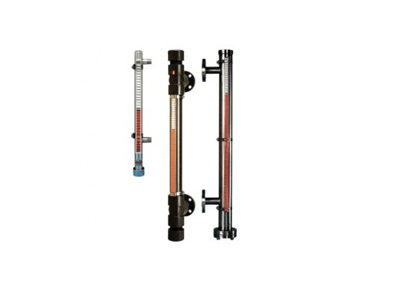

Magnetic Visual Level Gauge – Suresite

GEMS companies developed the magnetic level indicator to overcome the operational problems with conventional sight glasses. Since that time they have created the largest range of products and options available. The patented display “flags” used by GEMS are brilliantly coloured & visible to over 30M – they offer both standard, plastic & high temperature alloy flags. These indicators are intrinsically safe & also structurally safe, being supplied with material & weld certificates when required.
  • Visual indicator shows true level
  • Materials for almost any fluid, temperature & pressure
  • Continuous output transmitters & process alarms
  • Reduced number of tank penetrations for safety & cost
Mini Suresite – Compact & Good Value
  • Lengths to 6 meters 304 or 316 SS
  • 31mm body diameter
  • Version to 25 bar & 200°C
  • Continuous transmitter or switch points
  • Flanges to 1 inch # 150lb ANSI
  • 1/2 or 3/4 NPT thread connections
  • 4 mounting configurations
Plastic Versions for Chemical Resistance
  • Lengths to 6 metres
  • PVC, CPVC, Polypropylene & PVDE
  • Threaded & flanged couplings
  • 4 mounting configurations
  • Continuous output and /or switches
  • Versions to 140°C & 10bar
Standard Size for Difficult Applications
  • Temperatures to 40°C
Please see attached datasheet for all models and part numbers, contact ECEFast for application assistance

Data sheet : mini   standard   plastic
