Thermal dispersion type, FineTek SPX1 series

For water & oil based liquids with no moving parts.                           Contact us for price & delivery

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

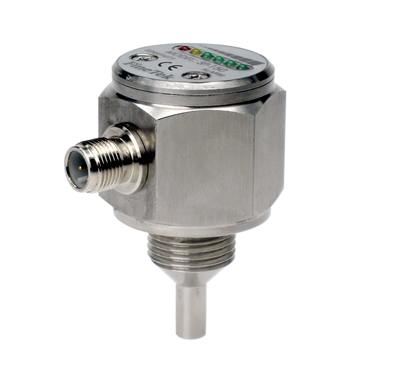

Thermal dispersion FineTek flow switch

Thermal Flow switches are rugged and zero maintenance – with no moving parts The Thermal Flow Switch is based on the principle of thermal dispersion. A typical configuration uses two Temperature Detectors set within the tip of the sensor. One Temperature Detectors is heated to a few degrees above the other. As the process medium flows over the tip of the sensor it disperses some of the heat from the heated Temperature Detector. The delta temperature is a function of flow velocity and converted into an electronic signal. The open collector changes state once the set point has been reached. This switch is available in SS or PVDF with ½”BSP process connection.
  • Detection of flow in pipes of different diameters
  • -20 to 80ºC and up to 100bar static pressure
  • LED display for flow level and alarm status
  • Open collector alarm output
  • Power 24V DC
  • Speed measuring range water: 1~150 cm/s
  • Speed measuring range oil: 3~300 cm/s
  • Material SUS304, 316, PVDF, PP and IP67 rated available

Downloads:   Data sheet
